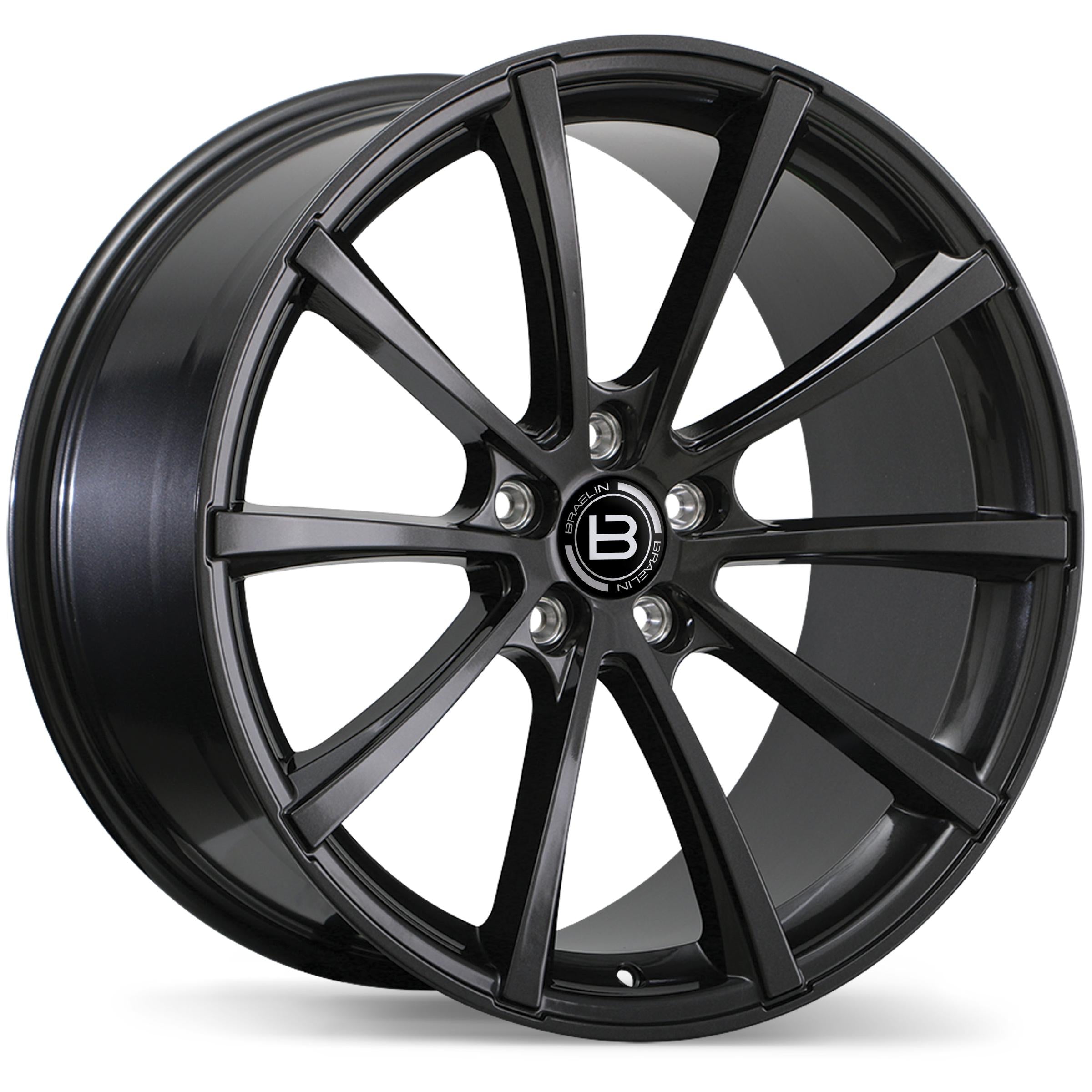

BRAELIN BR09 Alloy Wheel (Gloss Gunmetal) — 19", 20", 22"
$429.99 - $569.99$499.99 - $559.99
The BRAELIN BR09 alloy wheel captivates a sophisticated and elegant face, balanced with performance inspired details! These wheels are guaranteed to accentuate your vehicle with its Gloss Gunmetal finish providing the final touches!
These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.
-
- Slim and clean 5 V-spoke design
- Available in 19", 20" and 22" diameters
- Lightweight, high performance, single-piece alloy construction
- Flow Formed Barrel for reduced weight and increased strength
- Glossy Gunmetal Finish
- Black Centre Cap with machined BRAELIN Crest logo
- Approved for all-weather driving conditions
- VIA and JWL certifications
-
- Style #: BR09
- Finish: Gloss Gunmetal
- Pitch Circle Diameter (PCD): 5×114.3mm
- Hub Bore Diameter: 67.1mm
- All-Season Approved: Yes
Wheel Size Offset (mm) Weight (lbs./kg) Load Rating (lbs./kg) 19"×8.5" +45 24.8/11.3 1609/730 19"×8.5" +35 25.8/11.7 1609/730 19"×8.5" +25 25.8/11.7 1609/730 20"×8.5" +45 26.5/12.0 1609/730 20"×8.5" +35 26.9/12.2 1609/730 20"×8.5" +25 27.5/12.5 1609/730 22"×10.0" +45 33.2/15.1 1984/900 -
Wheel Size,
Offset19"×8.5",
+45mm19"×8.5",
+35mm19"×8.5",
+25mm20"×8.5",
+45mm20"×8.5",
+35mm20"×8.5",
+25mm22"×10.0",
+45mmCX-3 2016-2022 ❌ ❌ ❌ ❌ ❌ ❌ CX-30 2020-2023 ❌ ❌ 2020-2023 ❌ ❌ ❌ CX-5 2013-2023 2013-2023 ❌ 2013-2023 2013-2023 ❌ ❌ CX-50 2023 2023 ❌ 2023 2023 ❌ ❌ CX-7 2007-2012 2007-2012 ❌ 2007-2012 2007-2012 ❌ ❌ CX-9 2007-2023 2007-2023 2007-2023 2007-2023 2007-2023 2007-2023 2016-2023 CX-90 ❌ ❌ ❌ ❌ ❌ ❌ 2024 Mazda6 2009-2021 2014-2017 ❌ 2009-2021 2014-2017 ❌ ❌ MX-30 2022-2023 ❌ ❌ ❌ ❌ ❌ ❌ RX-8 2004-2011 2004-2011 ❌ 2004-2011 2004-2011 ❌ ❌
Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.
Special Notes
- Extra processing required; minimum lead time 7 business days prior to shipping availability
- Not included:
- Tire Valves
- Available: Chrome Tire Valves
- Wheel Nuts
- Please ensure you select the correct size of wheels for your vehicle
- If you choose to upsize or downsize, the corresponding tire size must also be changed
- If you are unsure of your sizing, please contact us and we'll be more than happy to help!
- Installation Option Available: Please contact us for further details
- Please review our Shipping Policies prior to purchase
About BRAELIN Wheels
Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.
