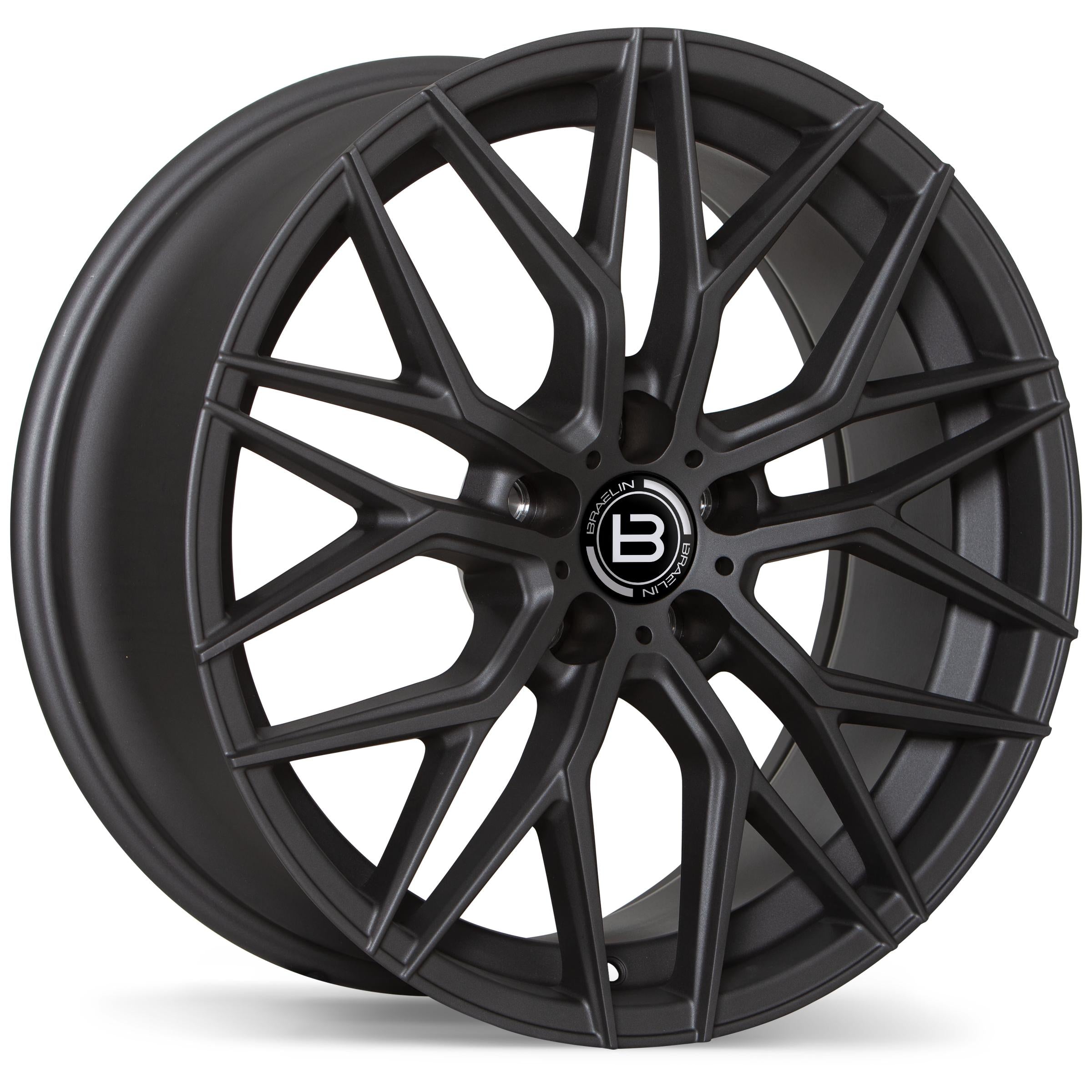

BRAELIN BR10 Alloy Wheel (Matte Graphite) - 18", 19", 20"

Looking for a wheel to stand out from all the rest? Look no further than the BRAELIN BR10! This alloy wheel exudes a strong and sophisticated presence with its face design, which is enhanced with precision milling techniques. This helps both aesthetically and with performance by providing levels of depth with each spoke whilst reducing the overall mass. Complete with a Matte Graphite finish, these wheels are a bold statement piece your vehicle!

These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.

    • Design: 5 Dual-Y-Spoke
    • Diametre: 18", 19", 20"
    • Lightweight, high performance, single-piece alloy construction
    • Flow Formed Barrel for reduced weight and increased strength
    • 5 lug; accommodates OEM wheel nuts
    • Matte Graphite finish
    • Black Centre Cap with BRAELIN's circular "B" logo
    • Approved for winter driving
    • VIA and JWL certifications



    • Style #: BR10
      • PCD: 5×114.3mm
      • Hub: 67.1mm
      • Finish: Matte Graphite
       Size Offset (mm) Weight (lbs.) Load Rating (lbs./kg)
      18"×8.0" +45 21.0 1587/720
      18"×8.0" +35 21.6 1587/720
      19"×8.5" +45 24.2 1521/690
      19"×8.5" +35 25.2 1521/690
      19"×8.5" +25 25.8 1521/690
      19"×9.5" +40 22.8 1521/690
      20"×9.0" +38 27.6 1797/815



      • Mazda3
        • 2004-2021
          • 18" × 8.0", +45
      • Mazdaspeed3
        • 2007-2013
          • 18" × 8.0", +45
      • Mazda5
        • 2006-2017
          • 18" × 8.0", +45
      • Mazda6
        • 2009-2013
          • 18" × 8.0", +45
          • 18" × 8.0", +35
          • 19" × 8.5", +45
        • 2014-2017
          • 18" × 8.0", +45
          • 18" × 8.0", +35
          • 19" × 8.5", +45
          • 19" × 8.5", +35
          • 20" × 9.0", +38
        • 2018-2021
          • 18" × 8.0", +45
          • 18" × 8.0", +35
          • 19" × 8.5", +45
        • Mazdaspeed6
          • 2006-2007
            • 18" × 8.0", +45
        • CX-3
          • 2016-2021
            • 18" × 8.0", +35
        • CX-30
          • 2020-2021
            • 18" × 8.0", +35
        • CX-5
          • 2013-2021
            • 18" × 8.0", +45
            • 18" × 8.0", +35
            • 19" × 8.5", +45
            • 19" × 8.5", +35
            • 19" × 9.5", +40
            • 20" × 9.0", +38
        • CX-7
          • 2007-2012
            • 18" × 8.0", +45
            • 18" × 8.0", +35
            • 19" × 8.5", +45
            • 19" × 8.5", +35
            • 19" × 9.5", +40
            • 20" × 9.0", +38
        • CX-9
          • 2007-2021
            • 18" × 8.0", +45
            • 18" × 8.0", +35
            • 19" × 8.5", +45
            • 19" × 8.5", +35
            • 19" × 8.5", +25
            • 19" × 9.5", +40
            • 20" × 9.0", +38
          • RX-8
            • 2004-2011 (Unstaggered)
              • 18" × 8.0", +45
              • 18" × 8.0", +35
              • 19" × 8.5", +45
              • 19" × 8.5", +35
            • 2004-2011 (Staggered)
              • F: 19" × 8.5", +45 | R: 19" × 9.5", +40
              • F: 19" × 8.5", +35 | R: 19" × 9.5", +40

          Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.

          Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

        Special Notes:

        • Pair each wheel with our available Chrome Tire Valve Stems!
        • Please ensure you select the correct size of wheels for your vehicle
          • If you choose to upsize or downsize, the corresponding tire size must also be changed
          • If you are unsure of your sizing, please contact us and we'll be more than happy to help!
        • Installation Option Available: Please contact us for further details
        • Please review our Shipping Policies prior to purchase

        About BRAELIN Wheels
        Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

        Braelin is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
