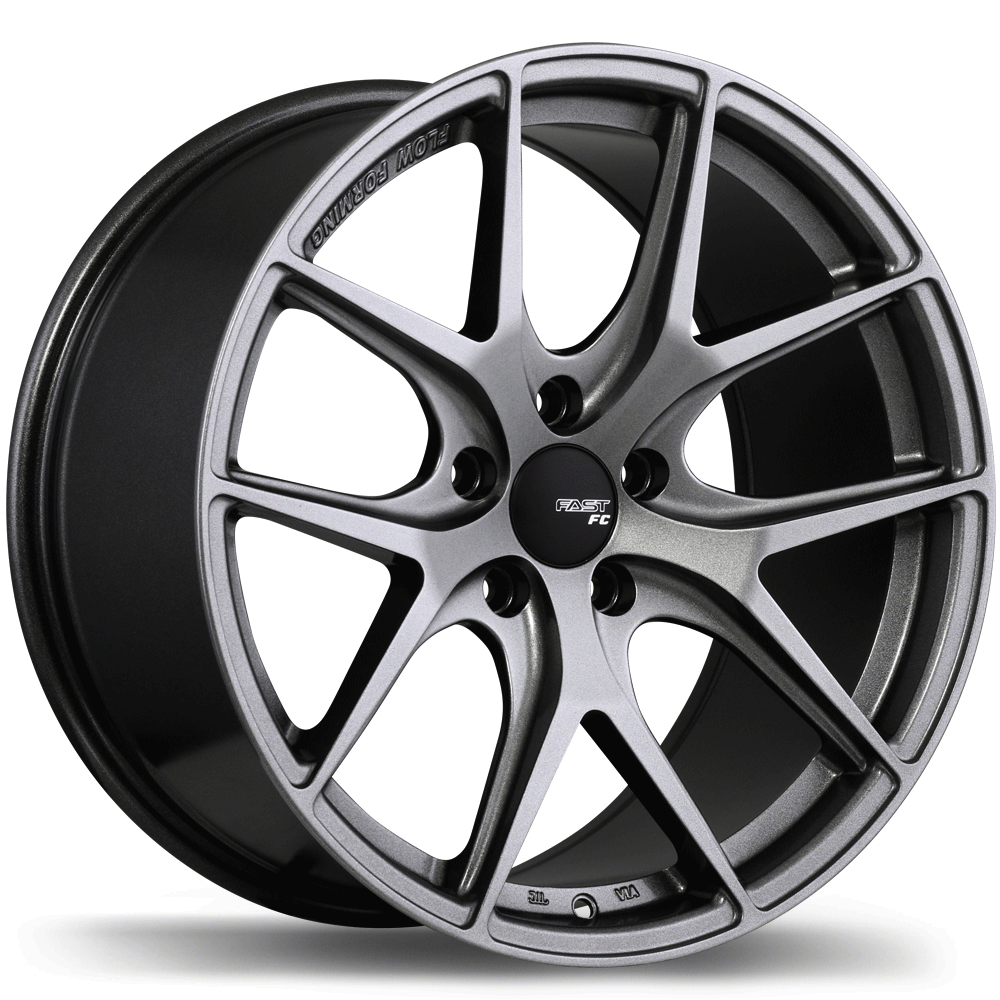

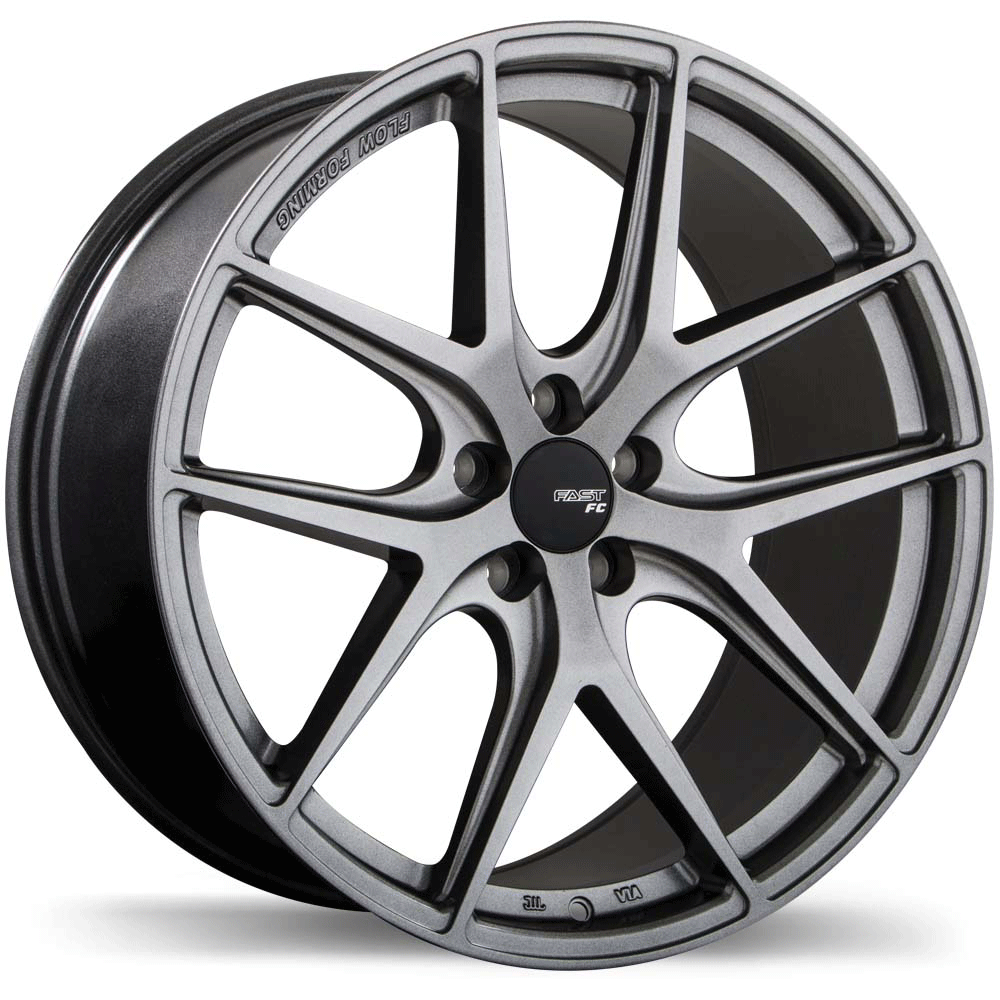

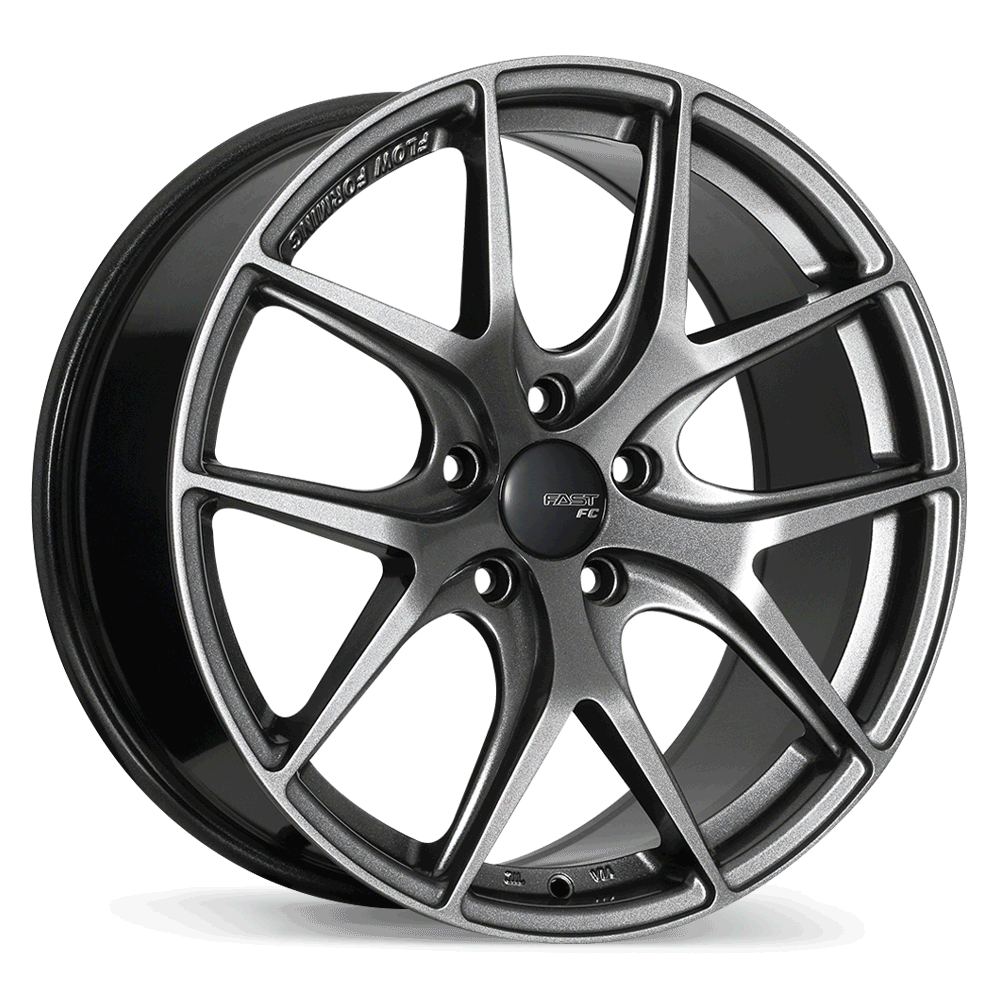

Fast Wheels FC04 Alloy Wheel (Titanium) - 17", 18", 19", 20"

Wheel Size

View available fitments for your Mazda using the "Applications" tab!

Fast Wheel's stunning FC04 Alloy Wheel is an exceptionally stunning year-round choice for both the track and the streets! The FC04 is part of Fast Wheel's competition series. Featuring: lightweight construction, flow formed technology (making it 20% lighter) and finished in an alluring Titanium finish. Fast Wheels crafts each wheel with high quality alloy and engineers all wheels for optimized fuel economy, improved acceleration and cornering. All wheels are tested to exceed JWL, VIA and SAE standards and CASS (salt spray) corrosion tested.

Fast Wheels crafts each wheel with high quality alloy and engineers all wheels for optimized fuel economy, improved acceleration and cornering. All wheels are tested to exceed JWL, VIA and SAE standards and CASS (salt spray) corrosion tested.

    • Five (5) Y-spoke design
    • Available in 17", 18", 19", 20" diameters
    • Stunning Titanium Finish
    • Lightweight, high-performance, single-piece alloy construction

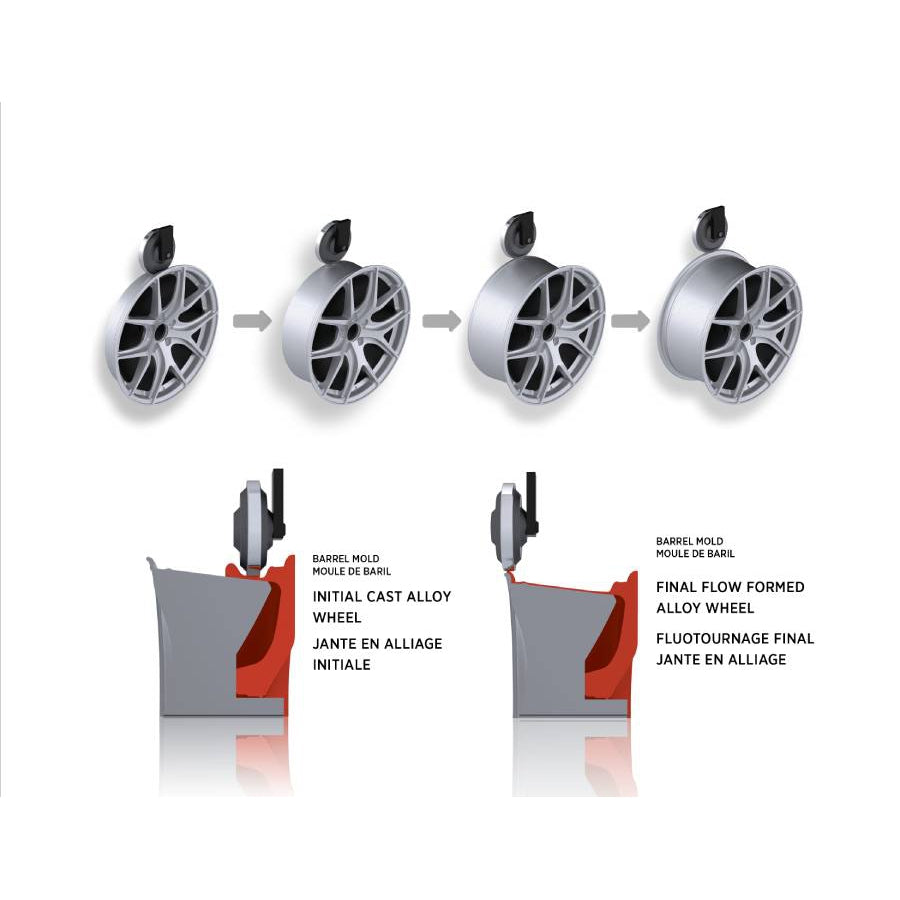

    • Made using Flow Forming technology, maximizing both strength and affordability
    • Satin Black Centre Cap with Chrome Outline Fast FC logo
    • Not Included:
    • Certifications: JWL, VIA
    • Style #: FC04
    • Finish: Titanium
    • Wheel Diameter: 17", 18", 19", 20"
    • Pitch Circle Diameter (PCD): 5×114.3mm
    • Hub Bore Diameter: 72.6mm
    • Lug Seat: 60° Conical
    • All-Season Approved: Yes
    Size Offset (mm) Weight (lbs./kg) Load Rating (lbs./kg)
    17"×8.0" +45 16.6/7.5
    1521/690
    17"×8.0" +35 17.4/7.9 1521/690
    18"×8.0" +40 18.8/8.5 1521/690
    18"×8.0" +30 19.4/8.8 1521/690
    18"×9.0" +40 19.0/8.6 1521/690
    18"×9.0" +30 19.2/8.7 1521/690
    18"×10.0" +45 20.0/9.1 1764/800
    19"×8.5" +45 20.8/9.4 1521/690
    19"×8.5" +35 21.4/9.7 1521/690
    19"×9.5" +45 20.0/9.1 1521/690
    19"×9.5" +35 20.4/9.3 1521/690
    20"×8.5" +45 22.8/10.3
    1797/815
    20"×8.5" +35 23.8/10.8 1797/815
    20"×9.5" +45 23.4/10.6 1797/815
    20"×9.5" +35 24.2/11.0 1797/815



    • Mazda3 Sedan & Hatchback
      • 2004-2023
        • 17"×8.0", +45mm
      • Mazda5
        • 2006-2017
          • 17"×8.0", +45mm
      • Mazda6
        • 2009-2013
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 19"×8.5", +45mm
          • 20"×8.5", +45mm
        • 2014-2017
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 18"×9.0", +40mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 19"×9.5", +45mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
          • 20"×9.5", +45mm
        • 2018-2021
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 19"×8.5", +45mm
          • 20"×8.5", +45mm
      • MX-30
        • 2022-2023
          • 18"×8.0", +40mm
          • 19"×8.5", +45mm
          • 20"×8.5", +45mm
      • CX-3
        • 2016-2022
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 19"×8.5", +45mm
      • CX-30
        • 2020-2023
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 19"×8.5", +45mm
          • 20"×8.5", +45mm
      • CX-5
        • 2013-2023
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 18"×8.0", +30mm
          • 18"×9.0", +40mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 19"×9.5", +45mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
      • CX-50
        • 2023
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 18"×8.0", +30mm
          • 18"×9.0", +40mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
      • CX-7
        • 2007-2012
          • 17"×8.0", +45mm
          • 17"×8.0", +35mm
          • 18"×8.0", +40mm
          • 18"×8.0", +30mm
          • 18"×9.0", +40mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
      • CX-9
        • 2007-2015
          • 18"×8.0", +40mm
          • 18"×8.0", +30mm
          • 18"×9.0", +40mm
          • 18"×9.0", +30mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 19"×9.5", +35mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
        • 2016-2023
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
          • 20"×9.5", +35mm
      • RX-8
        • 2004-2011 (Square Setup):
          • 18"×8.0", +40mm
          • 18"×8.0", +30mm
          • 18"×9.0", +40mm
          • 19"×8.5", +45mm
          • 19"×8.5", +35mm
          • 19"×9.5", +45mm
          • 20"×8.5", +45mm
          • 20"×8.5", +35mm
        • 2004-2011 (Staggered Width Setup)
          • Front: 18"×8.0", +40mm | Rear: 18"×9.0", +40mm
          • Front: 18"×8.0", +40mm | Rear: 18"×9.0", +30mm
          • Front: 18"×8.0", +30mm | Rear: 18"×9.0", +40mm
          • Front: 18"×8.0", +30mm | Rear: 18"×9.0", +30mm
          • Front: 19"×8.5", +45mm | Rear: 19"×9.5", +45mm
          • Front: 19"×8.5", +45mm | Rear: 19"×9.5", +35mm
          • Front: 19"×8.5", +35mm | Rear: 19"×9.5", +45mm
          • Front: 19"×8.5", +35mm | Rear: 19"×9.5", +35mm
          • Front: 20"×8.5", +45mm | Rear: 20"×9.5", +35mm
          • Front: 20"×8.5", +35mm | Rear: 20"×9.5", +35mm

    Special Notes:

    • Not Included:
    • Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.
    • Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.
    • Please ensure you select the correct size of wheels for your vehicle
      • If you choose to upsize or downsize, the corresponding tire size must also be changed
      • If you are unsure of your sizing, please contact us and we'll be more than happy to help!
    • Installation Option Available: Please contact us for further details
    • Please review our Shipping Policies prior to purchase

    About Fast Wheels

    Fast Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for all types of passenger vehicles. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

    Fast Wheels is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
